SMART CONTROLS

Connect sensing, control and commissioning without losing the cultivation intent

A cultivation control architecture should make device roles, fallback behavior and operational ownership visible from design through photoperiod.

Request a Spectral Systems Audit

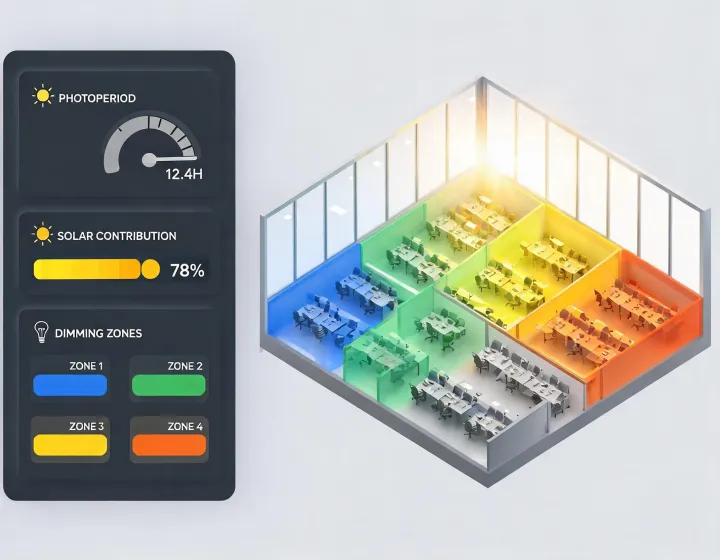

Lighting control dashboard and building zones
DALI-2 addressing0-10V zonesOccupancy sensingDaylight harvesting

Choose the interface by behavior, topology and service model

Protocol names alone do not establish compatibility. Confirm device roles, power requirements, addressing limits and the party responsible for setup.

DALI-2

Addressable devices support granular grouping and status, but commissioning requires a clear instance and device plan. Replacement workflows must preserve addressing records.

Review: bus power, device count, emergency roles

0-10V

A familiar analog interface can be straightforward to troubleshoot. Low-end output depends on the driver and control pairing, and separate mains switching may be required.

Review: sink/source behavior, wiring class, minimum dim

DMX

Fast scene and color control suits theatrical or dynamic architectural work. Network layout, termination and show-control ownership need disciplined documentation.

Review: universe plan, refresh behavior, fallback scene

Wireless

Retrofit flexibility can reduce signal wiring. Range is shaped by walls, metal construction and device placement, so representative-site testing matters.

Review: mesh paths, interference, battery service

A reproducible commissioning path

  1. 1

    Baseline

    Record firmware or device revision, installed load, crop and canopy condition and current settings.

  2. 2

    Address

    Confirm device identity, group membership and response at each controlled circuit.

  3. 3

    Tune

    Set occupied and unoccupied levels, solar contribution targets and timeout values in installed growing zones.

  4. 4

    Challenge

    Test loss of network, sensor obstruction, manual override and restoration from power interruption.

  5. 5

    Handover

    Export settings, exceptions, zone naming and a repeatable functional test sheet.

Metrics that reveal crop-light behavior

15 minExample photoperiod timeout to validate, not a universal default
1%Example dimming command increment for scene tuning
4 statesOccupied, vacant, solar contribution-limited and manual override checks
100%Named zones included in the turnover record

Audit the architecture before commissioning

Send the sequence of operations, protocol schedule and representative growing layout.
